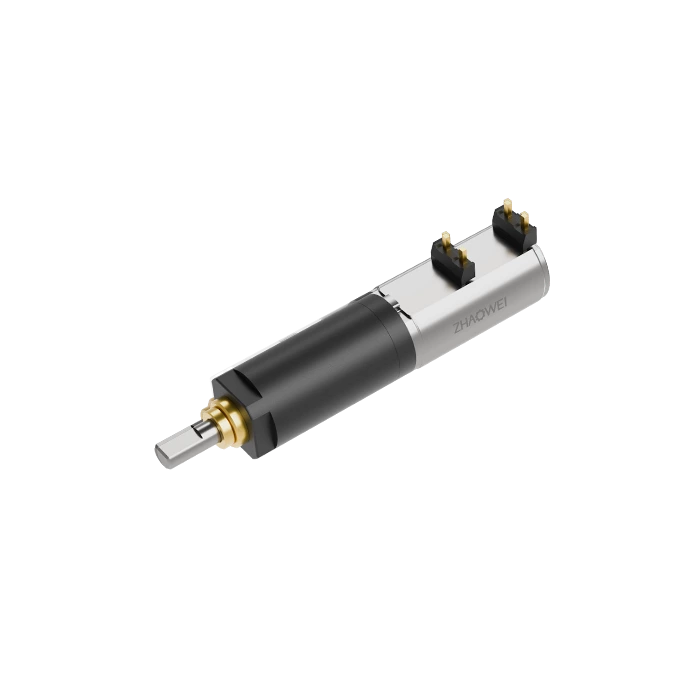

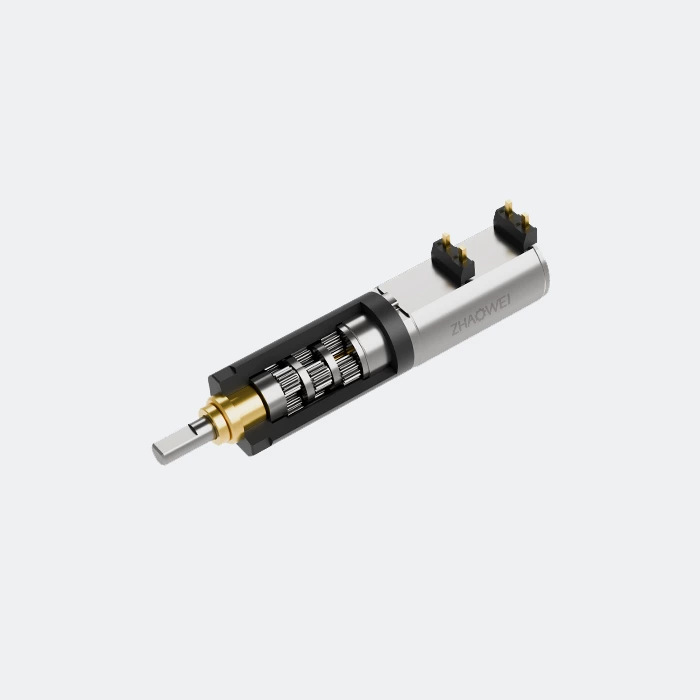

Micro Planetary Gearbox
Modèle:ZWBPD004004
- puissance transmissible maximale
- 0.7W
- couple continu maximum
- 0.015Nm
Feuille de date pdf
Gearbox Specifications:
| Bearing | Porous bearing | Rolling bearing |
|---|---|---|
| Axial Endplay | ≤ 0.3 mm | ≤ 0.3 mm |
| Radial Loading on Output Shaft | ≤ 0.3 N | ≤ 4 N |
| Operating Temperature | -20℃ ~ +85℃ | |
Parameters：
| Gearbox Stages | 1 | 2 | 3 | 4 |
|---|---|---|---|---|
| Reduction Ratio | 6 | 36 | 216 | 1296 |
| Max Rated Torque (gf.cm max) | 150 | 150 | 150 | 150 |
| Max Instant Torque (gf.cm max) | 400 | 400 | 400 | 400 |
| Gearbox Efficiency (%) | 85 | 72 | 57 | 49 |
| Length (mm) | 11.62 | 13.12 | 14.62 | 16.17 |
| Gear backlash | ≤ 2° | |||

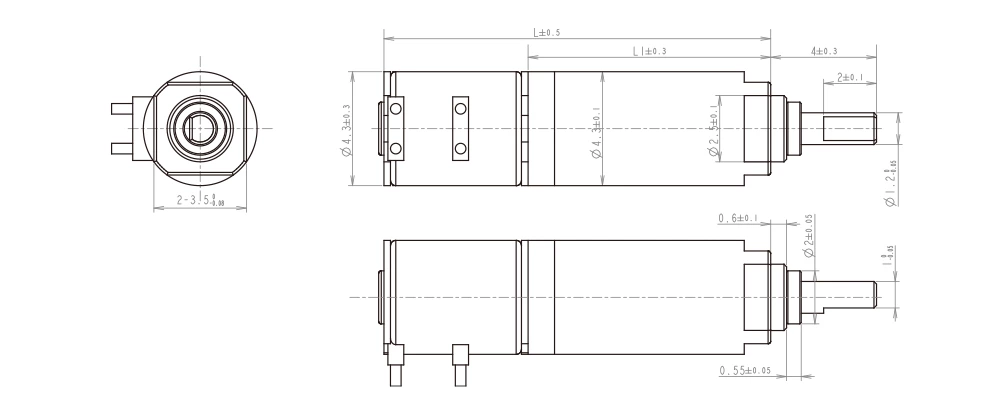

Drawing:
Motor Specifications:
| Motors (Optional) | Stepper motor |
|---|---|
| Voltage (Optional) | 3 V |
| Input Speed | ≤ 10,000 rpm |
| Current | 50 mA max |
Performance Data:
| Model | Rated Voltage(VDC) | Speed at 2000 pps(rpm) | Max Rated Torque(gf.cm) | Max Instant Torque (gf.cm) | Gearbox Length(L1)(mm) | Gear Ratio | Overall Length (L)(mm) |
|---|---|---|---|---|---|---|---|
| ZWBPD004004-6 | 3.0 | 500.0 | 150 | 400 | 11.62 | 6 | 6.17 |
| ZWBPD004004-36 | 3.0 | 83.0 | 150 | 400 | 13.12 | 36 | 7.67 |
| ZWBPD004004-216 | 3.0 | 13.0 | 150 | 400 | 14.62 | 216 | 9.17 |
| ZWBPD004004-1296 | 3.0 | 2.0 | 150 | 400 | 16.17 | 1296 | 10.72 |
* The above specifications are subject to change without prior notice. They are for reference only and can be customized as required.
