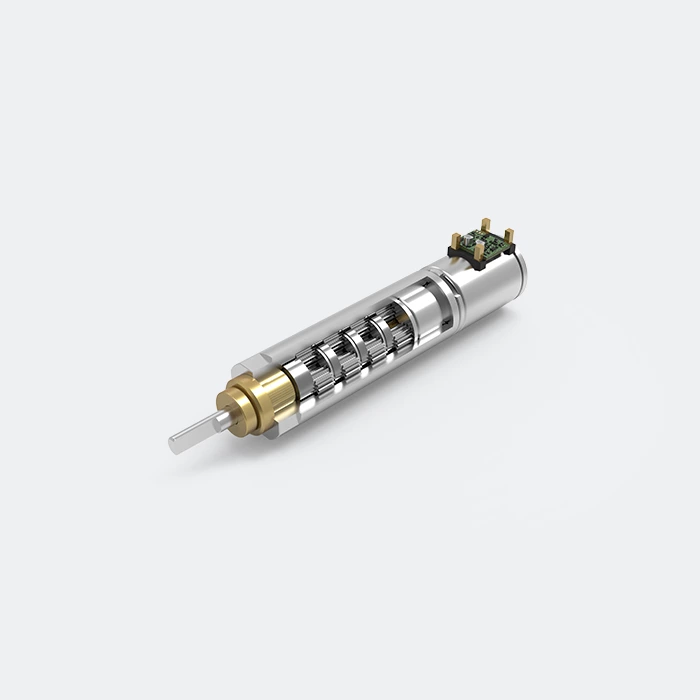

3.4 mm Metal Planetary Gearbox
Modèle:ZWBMD003003-XXX
- puissance transmissible maximale
- 0.7W
- couple continu maximum
- 0.005Nm
Feuille de date pdf
Gearbox Specifications:
| Bearing | Porous bearing |
|---|---|
| Axial Endplay | ≤0.3mm |
| Radial Loading on Output Shaft | ≤0.3N |
| Operating Temperature | -20℃ ~ +85℃ |
Parameters：
| Gearbox Stages | 1 | 2 | 3 | 4 |
|---|---|---|---|---|
| Reduction Ratio | 5 | 25 | 125 | 625 |
| Maximum continuous transmission power (W) | 0.7 | 0.7 | 0.7 | 0.7 |
| Max Rated Torque Of Gearbox(gf.cm) | 50 | 50 | 50 | 50 |
| Instant Torque of Gearbox(gf.cm) | 150 | 150 | 150 | 150 |
| Gearbox Efficiency | 85 | 73 | 65 | 58 |
| Length | 6.0 | 7.5 | 9.0 | 10.5 |

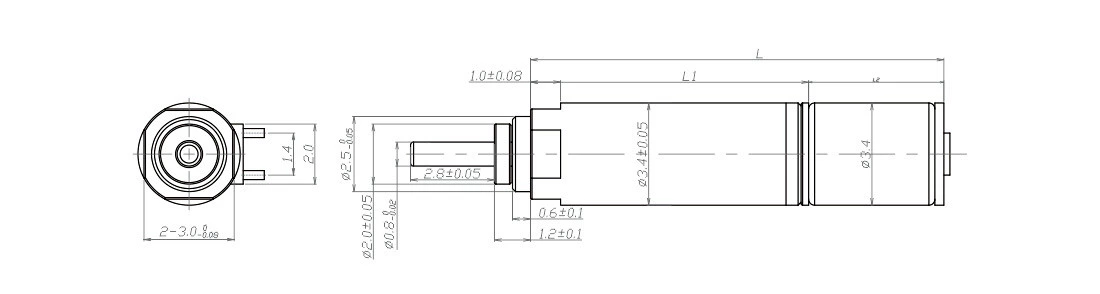

Drawing:
Motor Specifications:
| Motors (Optional) | Coreless motor, Stepper motor |
|---|---|
| Voltage (Optional) | 1.5-5V |
| Input Speed | ≤10000rpm |
| Current | 50mA max |
Performance Data:
| Model | Speed at 2400pps (rpm) |
Max Rated Torque (gf.cm) |
Max Instant Torque (gf.cm) |
Reduction Ratio | Length(L1) (mm) |
Overall Length(L) (mm) |
|---|---|---|---|---|---|---|
| ZWBMD003003-5 | 1440.0 | 50 | 150 | 5 | 6.0 | 10.75 |
| ZWBMD003003-25 | 288.0 | 50 | 150 | 25 | 7.5 | 12.25 |
| ZWBMD004004-125 | 57.6 | 50 | 150 | 125 | 9.0 | 13.75 |
| ZWBMD003003-625 | 11.5 | 50 | 150 | 625 | 10.5 | 15.25 |
* The above specifications are subject to change without prior notice. They are for reference only and can be customized as required.
