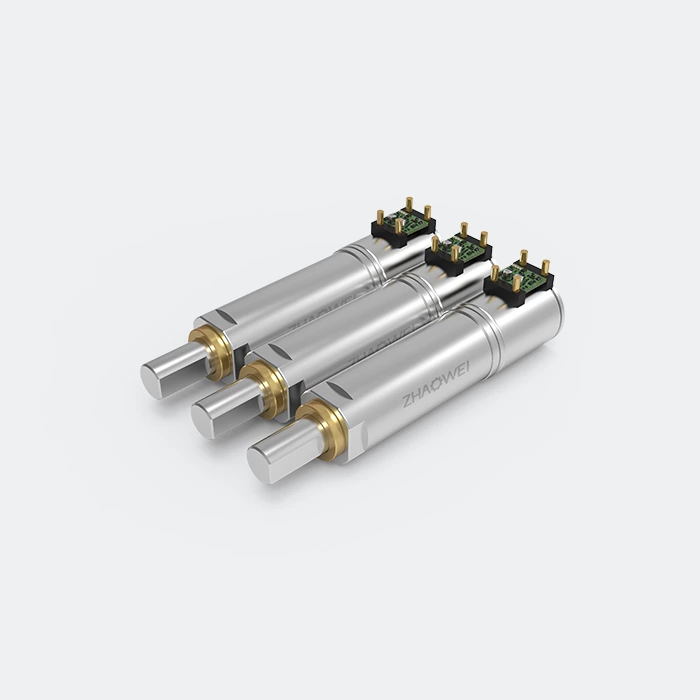

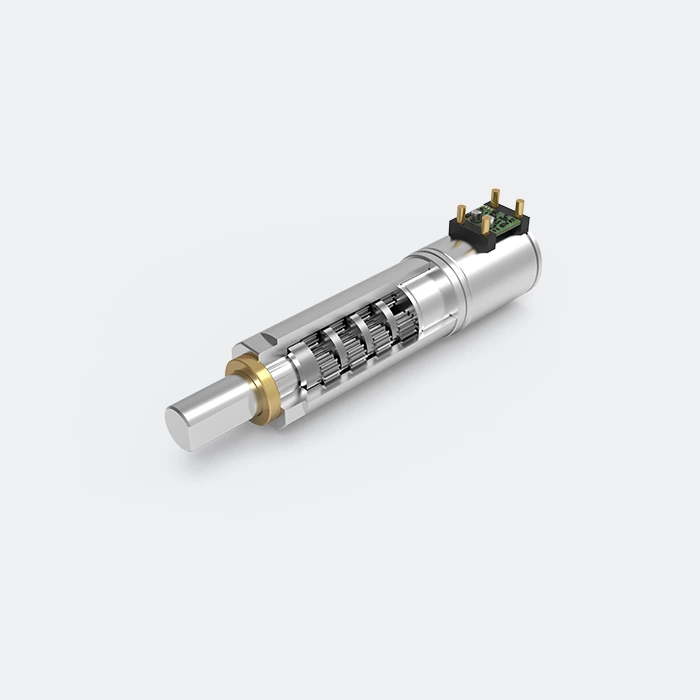

4 mm Metal Planetary Gearbox
Modèle:ZWBMD004004-XXX
- puissance transmissible maximale
- 0.7W
- couple continu maximum
- 0.015Nm
Feuille de date pdf
Gearbox Specifications:
| Bearing | Porous bearing |
|---|---|
| Axial Endplay | ≤0.3mm |
| Radial Loading on Output Shaft | ≤0.3N |
| Operating Temperature | -20℃ ~ +85℃ |
Parameters：
| Gearbox Stages | 1 | 2 | 3 | 4 |
|---|---|---|---|---|
| Reduction Ratio | 5 | 25 | 125 | 625 |
| Max Rated Torque （gf.cm max） | 70 | 70 | 70 | 70 |
| Max Instant Torque （gf.cm max） | 200 | 200 | 200 | 200 |
| Gearbox Efficiency | 85 | 73 | 65 | 58 |
| Length | 6.18 | 7.67 | 9.17 | 10.72 |
| Gear backlash | ≤3° | |||

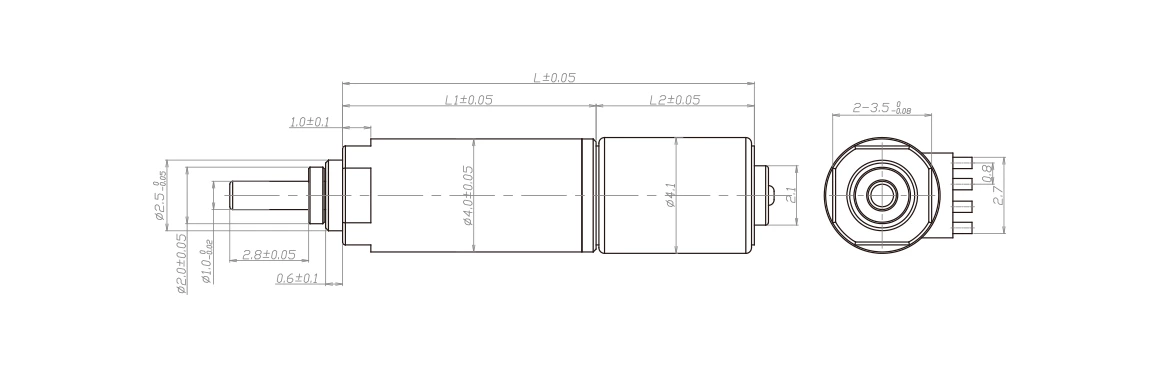

Drawing:
Motor Specifications:
| Motors (Optional) | Stepper motor |
| Voltage (Optional) | 1.5-5V |
| Input Speed | ≤10000rpm |
| Current | 50mA max |
Performance Data:
| Model | Speed at 2000pps (rpm) |
Max Rated Torque (gf.cm) |
Max Instant Torque (gf.cm) |
Reduction Ratio | Length(L1) (mm) |
Overall Length(L) (mm) |
|---|---|---|---|---|---|---|
| ZWBMD004004-6 | 1000.0 | 140 | 400 | 6 | 6.18 | 11.78 |
| ZWBMD004004-36 | 166.6 | 140 | 400 | 36 | 7.67 | 13.27 |
| ZWBMD004004-216 | 27.7 | 140 | 400 | 216 | 9.17 | 14.77 |
| ZWBMD004004-1296 | 4.6 | 140 | 400 | 1296 | 10.72 | 16.32 |
* The above specifications are subject to change without prior notice. They are for reference only and can be customized as required.
