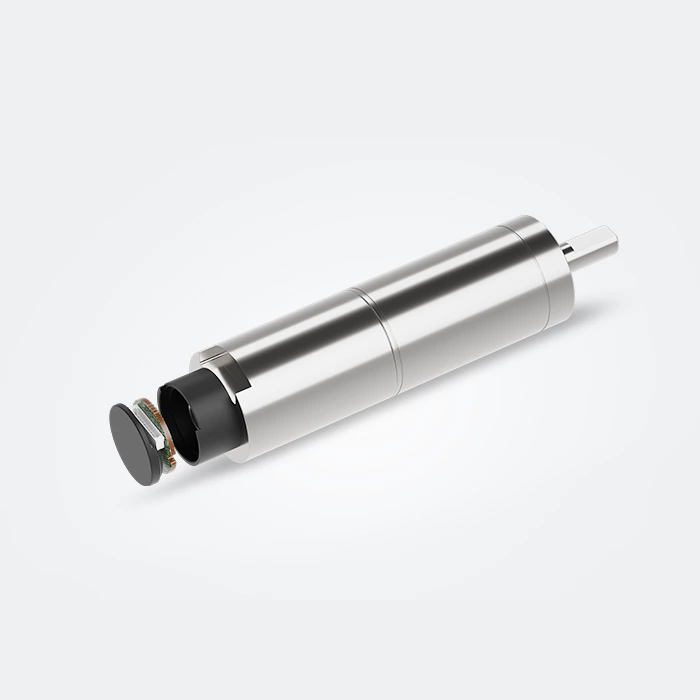

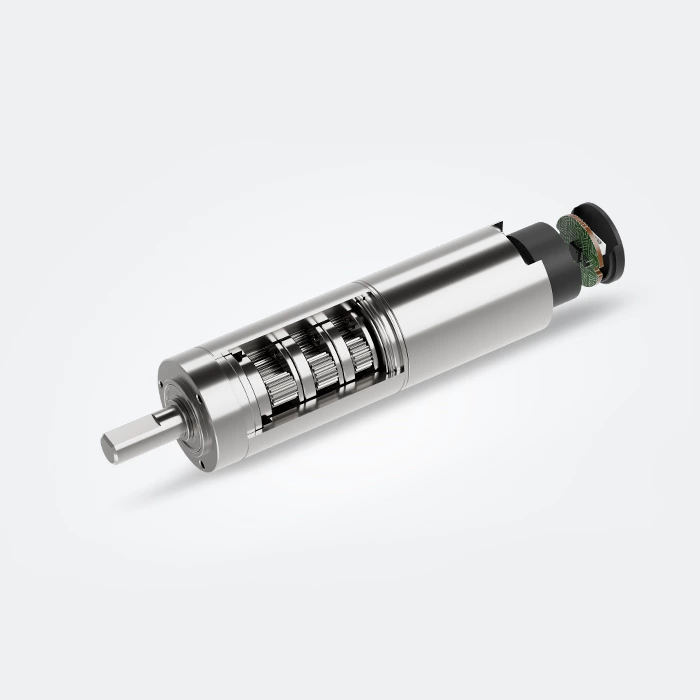

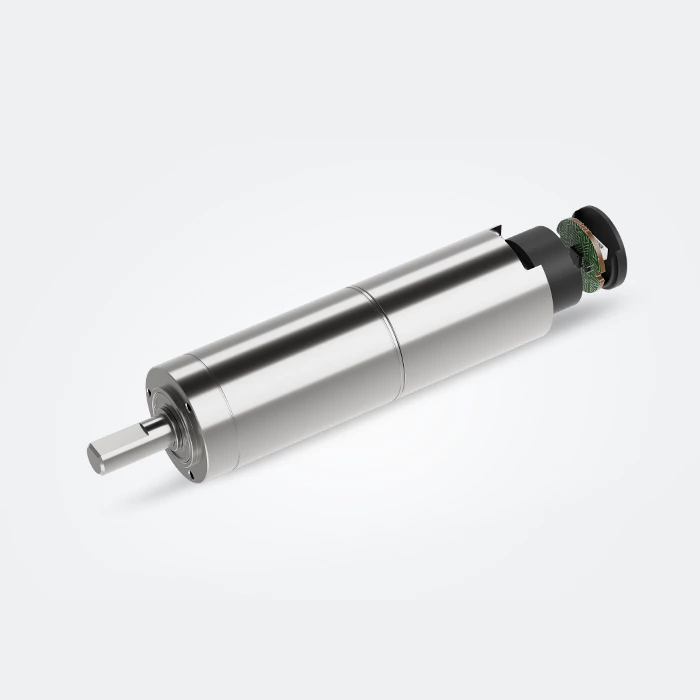

22 mm High Performance Planetary Gearbox
Modèle: ZWSMD022022
Gearbox Specifications: Bearing Porous bearing Rolling bearing Axial Endplay ≤ 0.1 mm ≤ 0.1 mm Radial Loading on Output Shaft ≤ 50 N ≤ 100 N Operating Temperature -20℃ ~ +85℃
- puissance transmissible maximale
- 66 W
- couple continu maximum
- 5.5 Nm
- vitesse d'entrée continue maximale
- 8000 rpm
- roulement en sortie
- Ball bearing
- Max. efficacité (%)
- 83-96
Parameters：
| Gearbox Stages | 1 | 2 | 3 | 4 | 5 |
|---|---|---|---|---|---|
| MAX. Continuous output torque (Nm) | 1 | 2.9 | 4.3 | 5.5 | 5.5 |
| MAX. Instant mobilization torque (Nm) | 1.25 | 3.6 | 5.3 | 6.5 | 6.5 |
| Reduction ratio | 3.71 | 9.7，14 | 43，66 | 94，112，134，159，190，246 | 415，592，989，1526 |
| Outer diameter (mm) | 22 | ||||
| Gearbox length（mm) | 24.3 | 32.8 | 40.4 | 46.5 | 52.6 |
| Maximum efficiency(%) | 96 | 92 | 90 | 87 | 83 |
| Recommended temperature range(℃） | -30~+85 | -30~+85 | -30~+85 | -30~+85 | -30~+85 |
| MAX. Gearbox weight (G) | 53 | 65 | 76 | 88 | 102 |
| Maximum transmission power (continuous)（W) | 66 | 36 | 20 | 11 | 6 |
| Maximum transmission power(instantaneous)（W) | 82.5 | 45 | 25 | 14 | 7 |
| Air load average empty return (°) | 0.5 | ||||
| The maximum axial load (dynamic)(N) | 80 | 80 | 80 | 80 | 80 |
| The maximum radial load (4mm from France)(N) | 100 | 145 | 150 | 150 | 150 |
| Output Bearing | Ball bearing | ||||
| Axial gap(mm) | 0~0.1 | ||||
*Note: The above data does not include the motor, the overall sale of the deceased and the motor, the specific parameters can be customized according to the customer's requirements.

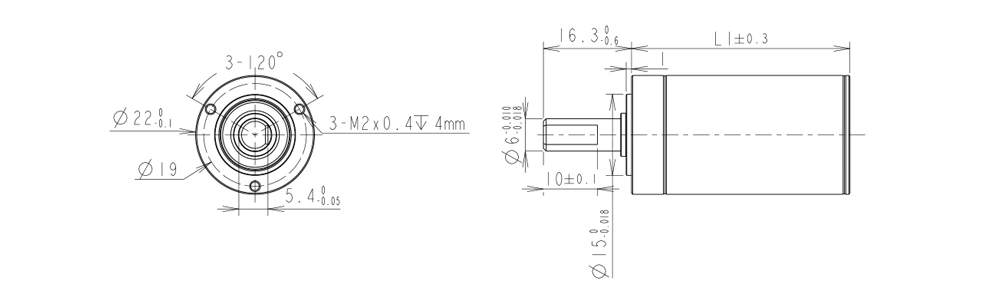

Drawing:
Modular Assembly:
| Combined product | Model | Series | |
|---|---|---|---|
| dc motor | MP1931 Φ19 mm graphite brush | 1-5 | |
| dc motor | MP2238 Φ22 mm graphite brush | 1-5 | |
| brushless motor | MO1925 Φ19 mm outer rotation brushless motor | 1-5 | |
| brushless motor | MC2232 Φ22 mm coreless brushless motor | 1-5 | |
| brushless motor | MC2250 Φ22 mm coreless brushless motor | 1-5 | |
| encoder | CB-ST-16 | Magnetic | |
Performance Data:
| Model | Rated voltage | Air load data | Load data | Total length | Gearbox rated torque | Gearbox instantaneous torque |
Reduction ratio |
Gearbox length L1 |
|||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Air -load speed | No-load current | Load speed | Load current | Torque | |||||||
| (V) | （rpm） | （mAmax） | （rpm） | （AMax） | （NM） | (mm) | (NM) | (NM) | / | (mm) | |
| ZWSMD022022-3.71 | 24 | 1914 | 150 | 1482 | 1 | 0.06 | 56.3 | 1 | 1.25 | 3.71 | 24.3 |
| ZWSMD022022-9.7 | 24 | 732 | 200 | 567 | 1.2 | 0.14 | 64.8 | 2.9 | 3.6 | 9.7 | 32.8 |
| ZWSMD022022-14 | 24 | 507 | 200 | 393 | 1.2 | 0.20 | 14 | ||||
| ZWSMD022022-43 | 24 | 165 | 250 | 128 | 1.5 | 0.60 | 72.4 | 4.3 | 5.3 | 43 | 40.4 |
| ZWSMD022022-66 | 24 | 108 | 250 | 83 | 1.5 | 0.92 | 66 | ||||
| ZWSMD022022-94 | 24 | 76 | 300 | 59 | 1.8 | 1.27 | 78.5 | 5.5 | 6.5 | 94 | 46.5 |
| ZWSMD022022-112 | 24 | 63 | 300 | 49 | 1.8 | 1.51 | 112 | ||||
| ZWSMD022022-134 | 24 | 53 | 300 | 41 | 1.8 | 1.81 | 134 | ||||
| ZWSMD022022-159 | 24 | 45 | 300 | 35 | 1.8 | 2.14 | 159 | ||||
| ZWSMD022022-190 | 24 | 37 | 300 | 29 | 1.8 | 2.56 | 190 | ||||
| ZWSMD022022-246 | 24 | 29 | 300 | 22 | 1.8 | 3.32 | 246 | ||||
| ZWSMD022022-415 | 24 | 17 | 350 | 13 | 2.2 | 5.34 | 84.6 | 5.2 | 6.5 | 415 | 52.6 |
| ZWSMD022022-592 | 24 | 12 | 350 | 9 | 2.2 | 7.62 | 592 | ||||
| ZWSMD022022-989 | 24 | 7 | 350 | 6 | 2.2 | 12.72 | 989 | ||||
| ZWSMD022022-1526 | 24 | 5 | 350 | 4 | 2.2 | 19.63 | 1526 | ||||
* The above specifications are subject to change without prior notice. They are for reference only and can be customized as required.
