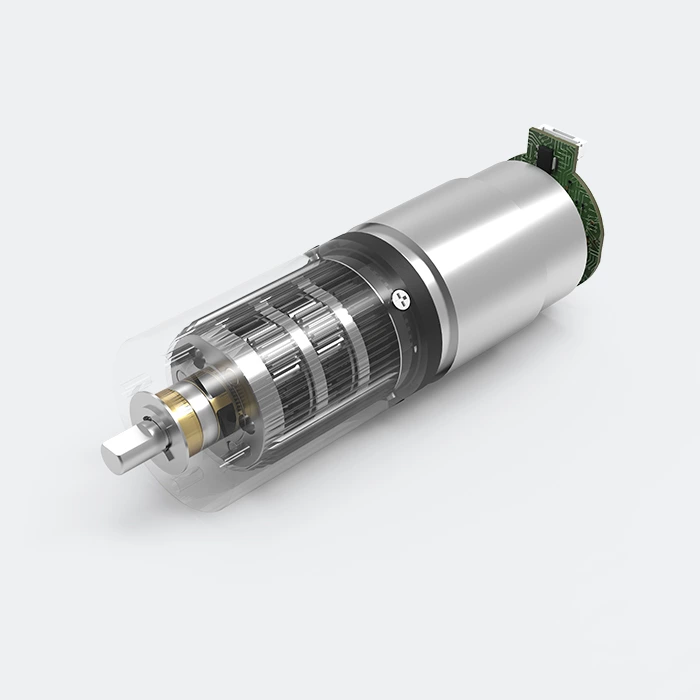

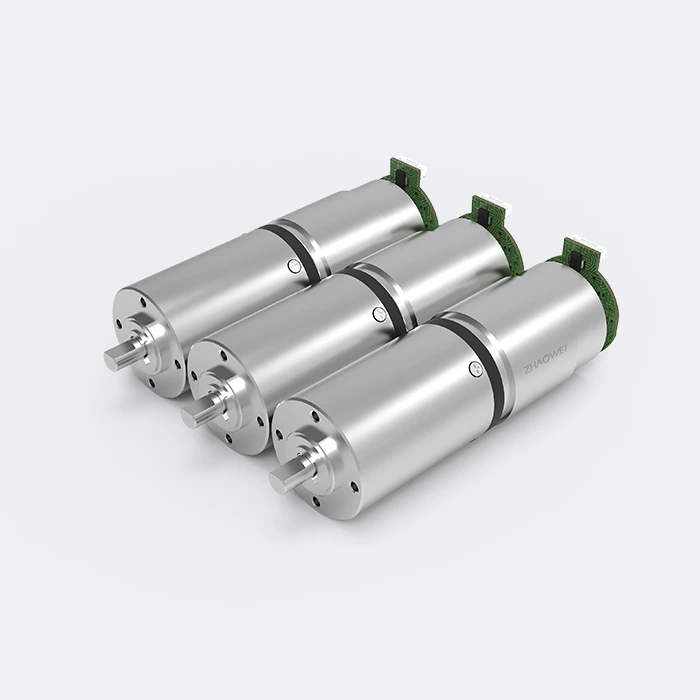

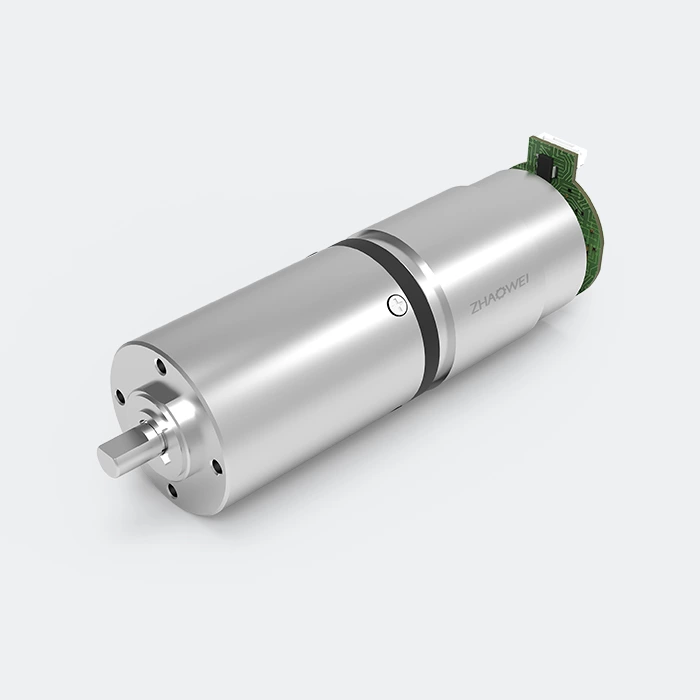

32 mm Metal Planetary Gearbox
Modèle:ZWBMD032032
- puissance transmissible maximale
- 2.8-10W
- couple continu maximum
- 6.5Nm
Feuille de date pdf
Gearbox Specifications:
| Bearing | Porous bearing | Rolling bearing |
|---|---|---|
| Axial Endplay | ≤0.3mm | ≤0.3mm |
| Radial Loading on Output Shaft | ≤120N | ≤180N |
| Operating Temperature | -20℃ ~ +75℃ | |
Parameters：
| Gearbox Stages | 2 | 3 | 4 |
|---|---|---|---|
| Reduction Ratio | 16/23/33 | 67/94/133/188 | 272/383/541/764/1078 |
| Max Rated Torque (gf.cm max) | 50,000 | 50,000 | 50,000 |
| Max Instant Torque (gf.cm max) | 150,000 | 150,000 | 150,000 |
| Gearbox Efficiency (%) | 85 | 80 | 75 |
| Length (mm) | 39.1 | 49.1 | 59.1 |
| Gear backlash | ≤3° Customizable | ||
Drawing:
Motor Specifications:
| Motors (Optional) | Brushed DC Motor, Brushless DC Motor |
|---|---|
| Voltage (Optional) | 3-24V |
| Input Speed | ≤12,000rpm |
| Current | 300mA max |
Performance Data:
Parameter(values at 24V &7,000rpm)The following data is for reference only.
| Model | Rated Speed (rpm) |
Max Speed (rpm) |
Max Rated Torque (gf.cm) | Max Instant Torque (gf.cm) |
Gear Ratio | Length (L1) (mm) |
Overall Length (L) (mm) |
|---|---|---|---|---|---|---|---|
| ZWBMD032032-4 | 1875 | 7500 | 50000 | 150000 | 4 | 29.1 | 71.6 |
| ZWBMD032032-6 | 1250 | 5000 | 50000 | 150000 | 6 | ||
| ZWBMD032032-16 | 469 | 1875 | 50000 | 150000 | 16 | 39.1 | 81.6 |
| ZWBMD032032-24 | 313 | 1250 | 50000 | 150000 | 24 | ||
| ZWBMD032032-33 | 227 | 909 | 50000 | 150000 | 33 | ||
| ZWBMD032032-67 | 112 | 448 | 50000 | 150000 | 67 | 49.1 | 91.6 |
| ZWBMD032032-94 | 80 | 319 | 50000 | 150000 | 94 | ||
| ZWBMD032032-133 | 56 | 226 | 50000 | 150000 | 133 | ||
| ZWBMD032032-188 | 40 | 160 | 50000 | 150000 | 188 | ||
| ZWBMD032032-272 | 28 | 110 | 50000 | 150000 | 272 | 59.1 | 101.6 |
| ZWBMD032032-383 | 20 | 78 | 50000 | 150000 | 383 | ||
| ZWBMD032032-540 | 14 | 56 | 50000 | 150000 | 540 | ||
| ZWBMD032032-763 | 10 | 39 | 50000 | 150000 | 763 | ||
| ZWBMD032032-1076 | 7 | 28 | 50000 | 150000 | 1076 |
* The above specifications are subject to change without prior notice. They are for reference only and can be customized as required.
