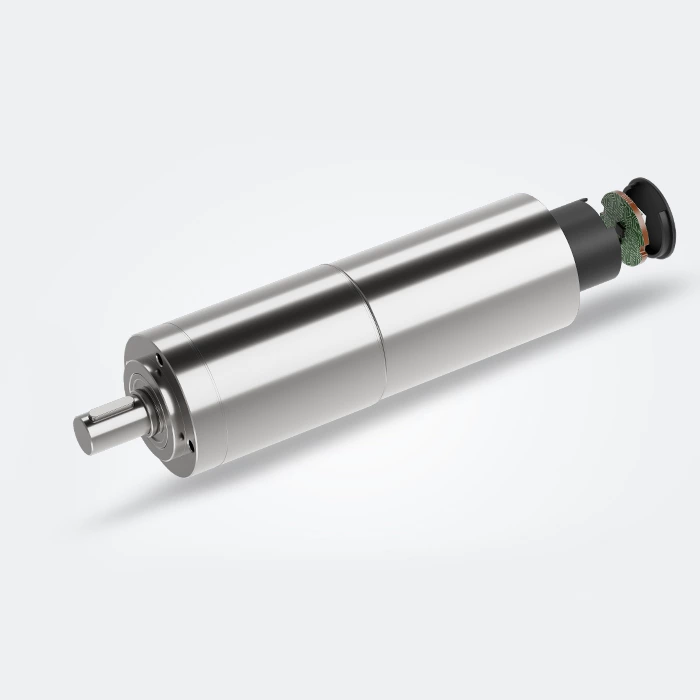

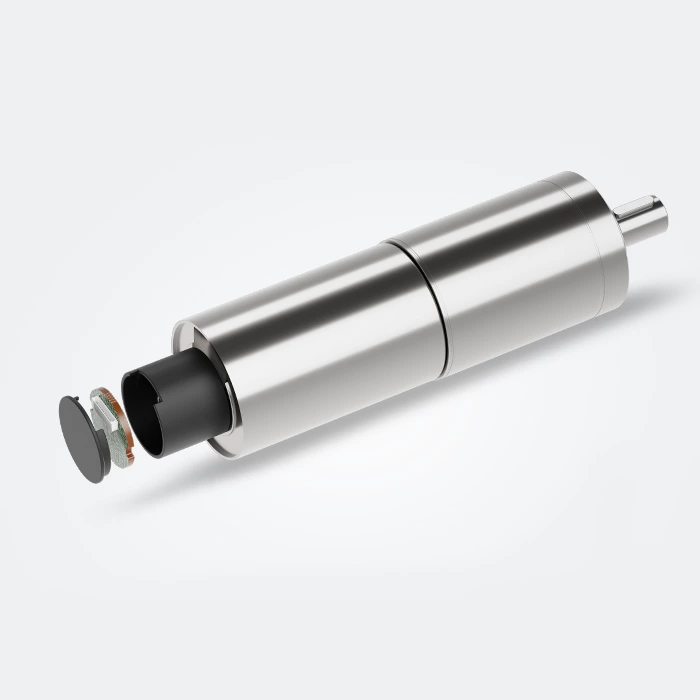

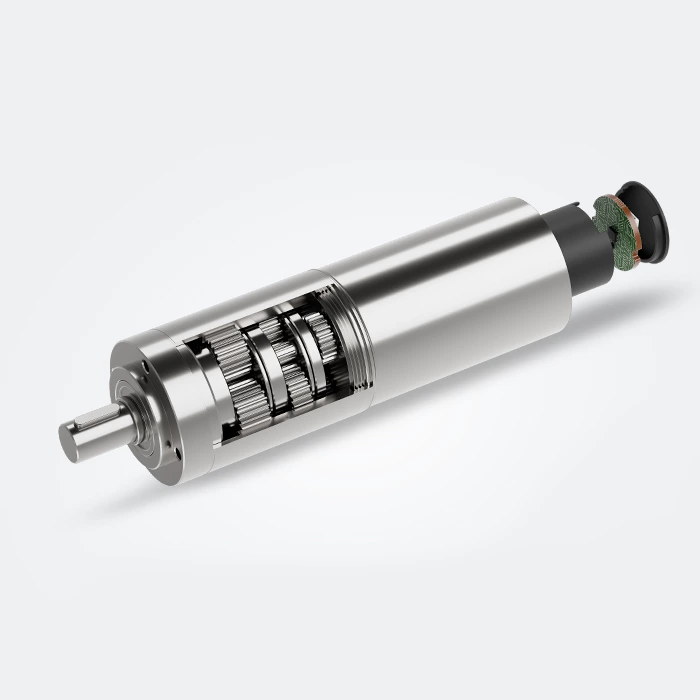

24V DC Gear Motor (38 mm)
Modèle: ZWSMD038038
Gearbox Specifications: Bearing Porous bearing Rolling bearing Axial Endplay ≤ 0.3 mm ≤ 0.3 mm Radial Loading on Output Shaft ≤ 50 N ≤ 100 N Operating Temperature -20℃ ~ +75℃
- puissance transmissible maximale
- 185 W
- couple continu maximum
- 9.3 Nm
- vitesse d'entrée continue maximale
- 7000 rpm
- roulement en sortie
- Ball bearing
- Max. efficacité (%)
- 90-96
Parameters：
| Gearbox Stages | 1 | 2 | 3 |
|---|---|---|---|
| MAX. Continuous output torque (Nm) | 2.3 | 5.4 | 9.3 |
| MAX. Instant mobilization torque (Nm) | 2.9 | 6.8 | 11.6 |
| Reduction ratio | 3.9 | 16,26 | 62,83, 103,111, 138,150, 172,186, 231 |
| Outer diameter (mm) | 37 | ||
| Gearbox length（mm) | 32.3 | 45.4 | 52.9 |
| Maximum efficiency(%) | 96 | 93 | 90 |
| Recommended temperature range(℃） | -40~+100 | ||
| MAX. Gearbox weight (G) | 240 | 320 | 420 |
| Maximum transmission power (continuous)（W) | 185 | 90 | 45 |
| Maximum transmission power(instantaneous)（W) | 230 | 115 | 60 |
| Air load average empty return (°) | 0.5 | ||
| The maximum axial load (dynamic)(N) | 240 | ||
| The maximum radial load (4mm from France)(N) | 200 | 250 | 250 |
| Output Bearing | Ball bearing | ||
| Axial gap(mm) | 0~0.1 | ||
*Note: The above data does not include the motor, the overall sale of the deceased and the motor, the specific parameters can be customized according to the customer's requirements.

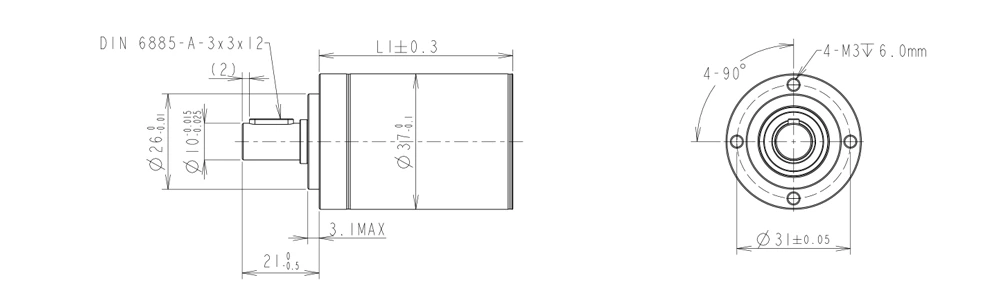

Drawing:
Modular Assembly:
| Combined product | model | series | |
|---|---|---|---|
| dc motor | 3571 Φ35 mm coreless brush | 1-3 | |
| dc motor | 3857 Φ38 mm graphite brush | 1-3 | |
| brushless motor | 3657 Φ36 mm brushless motor | 1-3 | |
| encoder | CB-ST-22 | Magnetic | |
Performance Data:
| Model | Rated voltage | Air load data | Load data | Total length | Gearbox rated torque | Gearbox instantaneous torque |
Reduction ratio |
Gearbox length L1 |
|||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Air -load speed | No-load current | Load speed | Load current | Torque | |||||||
| (V) | （rpm） | （mAmax） | （rpm） | （AMax） | （NM） | (mm) | (NM) | (NM) | / | (mm) | |
| ZWSMD038038-3.9-X | 24 | 2085 | 600 | 1836 | 4 | 0.5 | 103.3 | 2.3 | 2.9 | 3.9 | 32.3 |
| ZWSMD038038-16-X | 24 | 508 | 600 | 448 | 4.5 | 1.8 | 116.4 | 5.4 | 6.8 | 16 | 45.4 |
| ZWSMD038038-26-X | 24 | 313 | 600 | 275 | 4.5 | 3.0 | 71 | 26 | |||
| ZWSMD038038-62-X | 24 | 131 | 700 | 115 | 5 | 6.9 | 123.9 | 9.3 | 11.6 | 62 | 52.9 |
| ZWSMD038038-83-X | 24 | 98 | 700 | 86 | 5 | 9.2 | 71 | 83 | |||
| ZWSMD038038-103-X | 24 | 79 | 700 | 70 | 5 | 11.4 | 71 | 103 | |||
| ZWSMD038038-111-X | 24 | 73 | 700 | 65 | 5 | 12.3 | 71 | 111 | |||
| ZWSMD038038-138-X | 24 | 59 | 700 | 52 | 5 | 15.3 | 71 | 138 | |||
| ZWSMD038038-150-X | 24 | 54 | 700 | 48 | 5 | 16.7 | 71 | 150 | |||
| ZWSMD038038-172-X | 24 | 47 | 700 | 42 | 5 | 19.1 | 71 | 172 | |||
| ZWSMD038038-186-X | 24 | 44 | 700 | 38 | 5 | 20.7 | 71 | 186 | |||
| ZWSMD038038-231-X | 24 | 35 | 700 | 31 | 5 | 25.7 | 71 | 231 | |||
* The above specifications are subject to change without prior notice. They are for reference only and can be customized as required.
