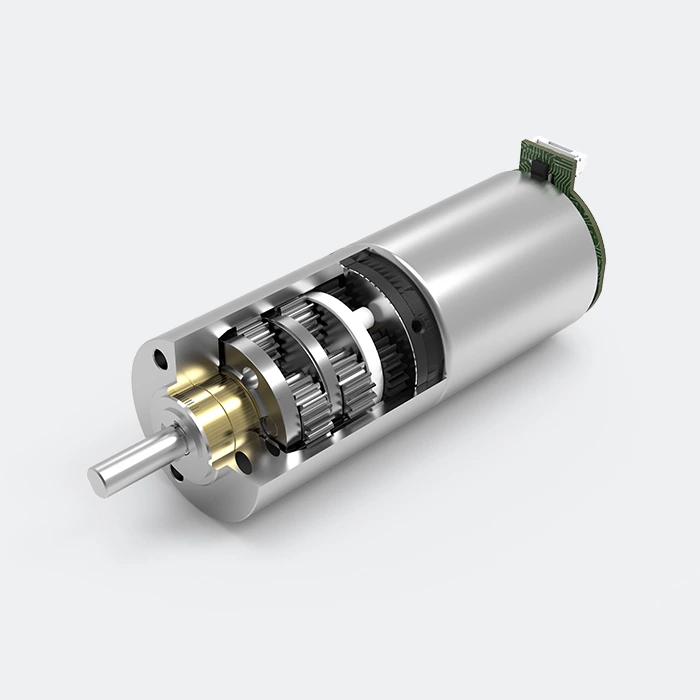

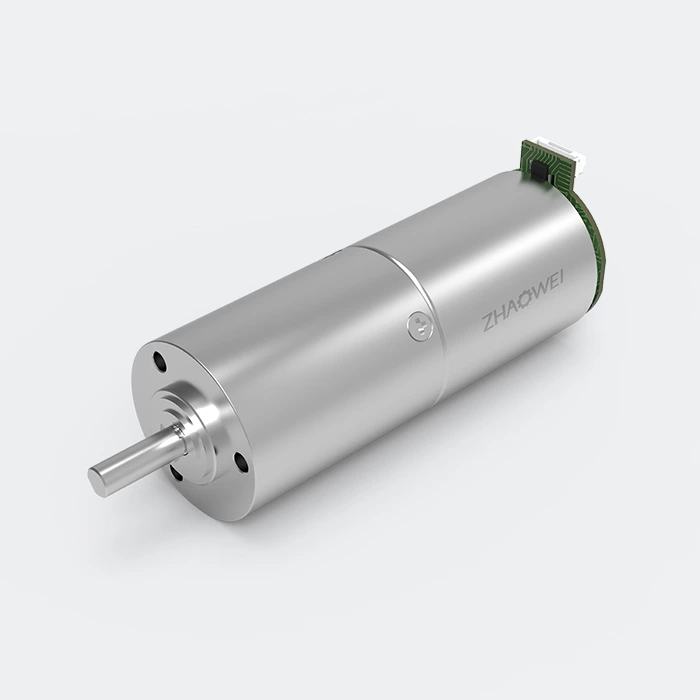

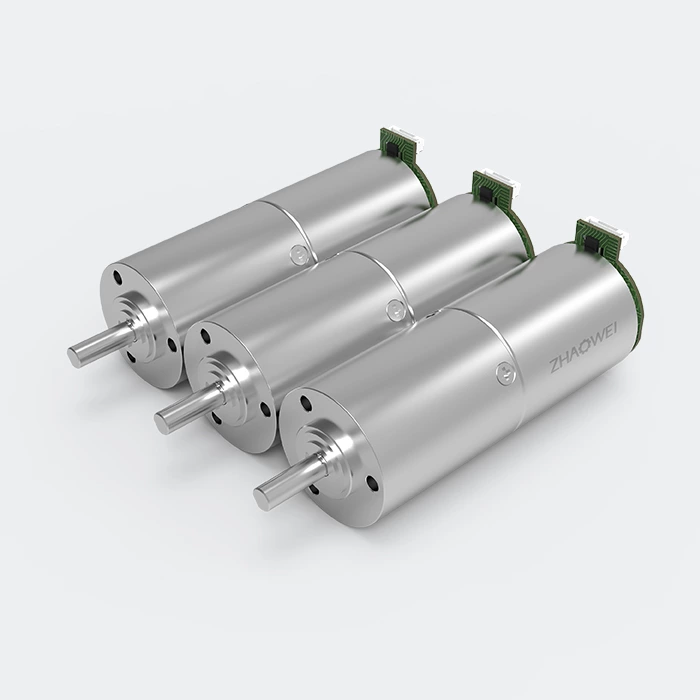

24 mm Metal Planetary Gearbox
Modèle:ZWBMD024024
- puissance transmissible maximale
- 30W
- couple continu maximum
- 2Nm
Feuille de date pdf
Gearbox Specifications:
| Bearing | Porous bearing | Rolling bearing |
|---|---|---|
| Axial Endplay | ≤0.2mm | ≤0.2mm |
| Radial Loading on Output Shaft | ≤120N | ≤170N |
| Operating Temperature | -30℃ ~ +100℃ | |
Parameters：
| Gearbox Stages | 1 | 2 | 3 | 4 |
|---|---|---|---|---|
| Reduction Ratio | 4/6 | 16/24/36 | 64/96/144/216 | 256/384/576/864/1296 |
| Max Rated Torque (gf.cm max) | 20,000 | 20,000 | 20,000 | 20,000 |
| Max Instant Torque (gf.cm max) | 60,000 | 60,000 | 60,000 | 60,000 |
| Gearbox Efficiency (%) | 90 | 85 | 80 | 75 |
| Length (mm) | 19 | 25 | 32 | 39 |
| Gear backlash | ≤3° Customizable | |||

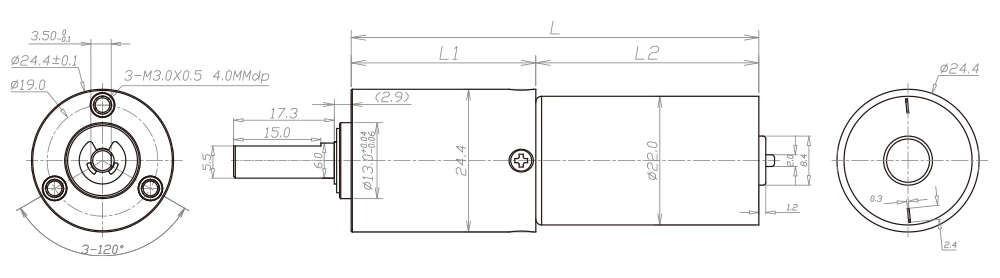

Drawing:
Motor Specifications:
| Motors (Optional) | Brushed DC Motor，Brushless DC Motor，Coreless Motor, Stepper Motor |
|---|---|
| Voltage (Optional) | 3-24V |
| Input Speed | ≤15,000rpm |
| Current | 300mA max |
Performance Data:
| Model | Rated Speed (rpm) |
Max Speed (rpm) |
Max Rated Torque (gf.cm) | Max Instant Torque (gf.cm) |
Gear Ratio | Length (L1) (mm) |
Overall Length (L) (mm) |
|---|---|---|---|---|---|---|---|
| ZWBMD024024-4 | 1875 | 7500 | 20000 | 60000 | 4 | 19.1 | 49.9 |
| ZWBMD024024-6 | 1250 | 5000 | 20000 | 60000 | 6 | ||
| ZWBMD024024-16 | 469 | 1875 | 20000 | 60000 | 16 | 25.0 | 55.8 |
| ZWBMD024024-24 | 313 | 1250 | 20000 | 60000 | 24 | ||
| ZWBMD024024-36 | 208 | 833 | 20000 | 60000 | 36 | ||
| ZWBMD024024-64 | 117 | 469 | 20000 | 60000 | 64 | 32.0 | 62.8 |
| ZWBMD024024-96 | 78 | 313 | 20000 | 60000 | 96 | ||
| ZWBMD024024-144 | 52 | 208 | 20000 | 60000 | 144 | ||
| ZWBMD024024-216 | 35 | 139 | 20000 | 60000 | 216 | ||
| ZWBMD024024-256 | 29 | 117 | 20000 | 60000 | 256 | 39.0 | 69.8 |
| ZWBMD024024-384 | 20 | 78 | 20000 | 60000 | 384 | ||
| ZWBMD024024-576 | 13 | 52 | 20000 | 60000 | 576 | ||
| ZWBMD024024-864 | 9 | 35 | 20000 | 60000 | 864 | ||
| ZWBMD024024-1296 | 6 | 23 | 20000 | 60000 | 1296 |
* The above specifications are subject to change without prior notice. They are for reference only and can be customized as required.
