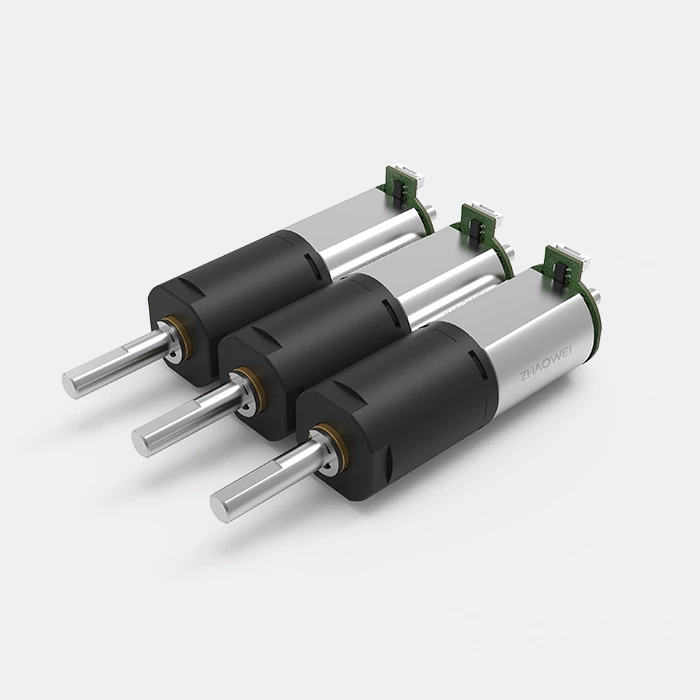

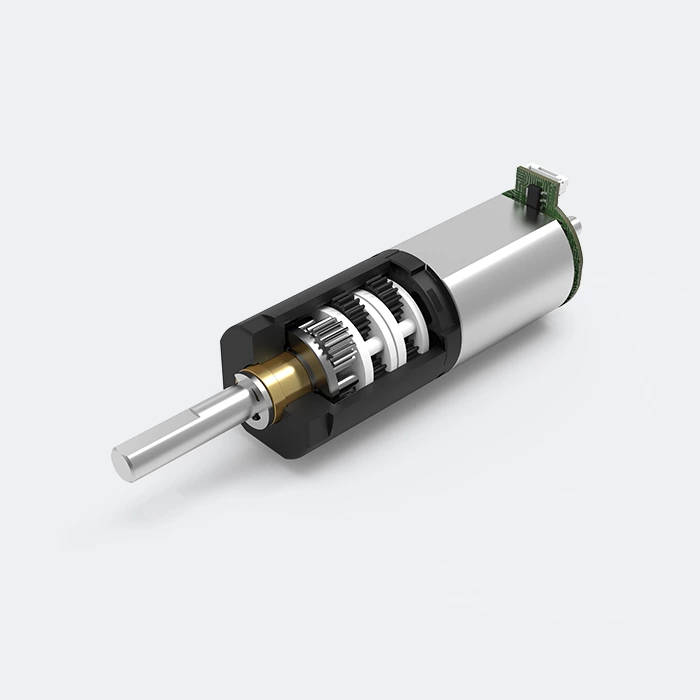

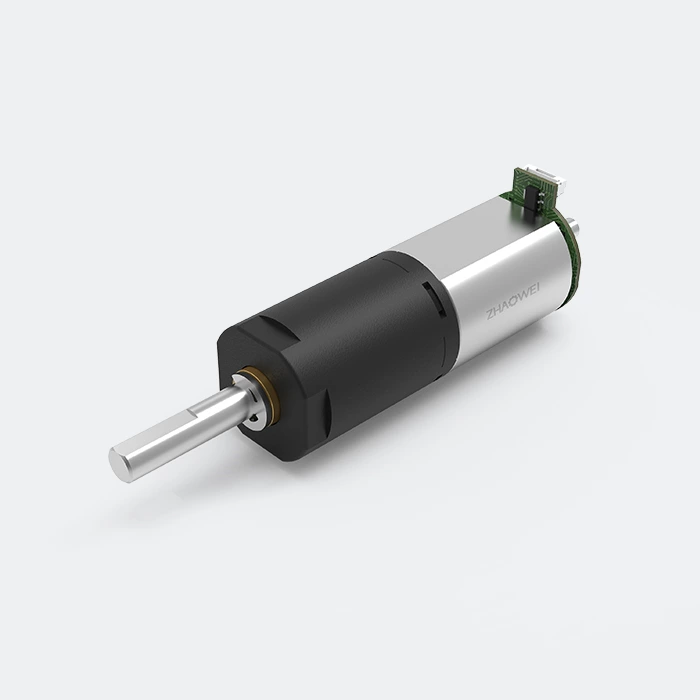

12 mm Plastic Planetary Gearbox
Modèle:ZWPD012012
- puissance transmissible maximale
- 0.18W
- couple continu maximum
- 0.049Nm
Feuille de date pdf
Gearbox Specifications:
| Bearing | Porous bearing |
|---|---|
| Axial Endplay | ≤ 0.3 mm |
| Radial Loading on Output Shaft | ≤ 5 N |
| Operating Temperature | -20℃ ~ +85℃ |
Parameters：
| Gearbox Stages | 1 | 2 | 3 | 4 |
|---|---|---|---|---|
| Reduction Ratio | 4/6 | 16/24/36 | 64/94/144/216 | 256/384/576/864/1296 |
| Max Rated Torque (gf.cm max) | 200 | 400 | 600 | 850 |
| Max Instant Torque (gf.cm max) | 500 | 800 | 1,200 | 1,700 |
| Gearbox Efficiency (%) | 85 | 73 | 65 | 58 |
| Length (mm) | 9.5 | 13.3 | 17.1 | 20.9 |

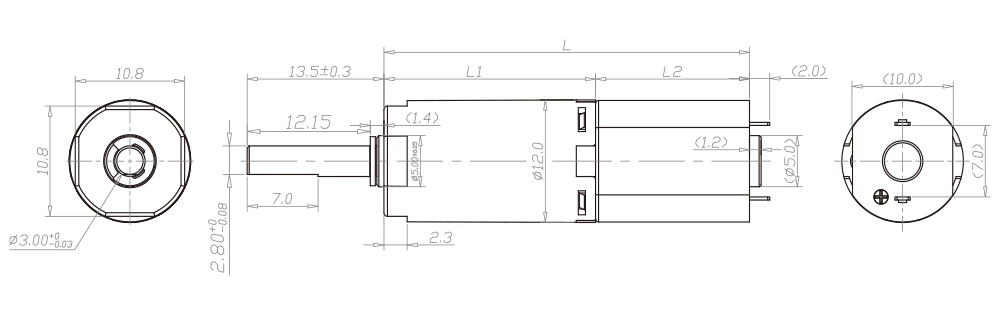

Drawing:
Motor Specifications:
| Motors (Optional) | Brushed DC Motor，Brushless DC Motor，Coreless Motor, Stepper Motor |
|---|---|
| Voltage (Optional) | 3-24 V |
| Input Speed | ≤ 30,000 rpm |
| Current | 250 mA max |
| Gear backlash | ≤ 3° |
Performance Data:
| Model | Rated Speed (rpm) |
Max Speed (rpm) |
Max Rated Torque (gf.cm) | Max Instant Torque (gf.cm) |
Gear Ratio | Length (L1) (mm) |
Overall Length (L) (mm) |
|---|---|---|---|---|---|---|---|
| ZWPD012012-4 | 1875 | 7500 | 600 | 1200 | 4 | 9.5 | 24.5 |
| ZWPD012012-6 | 1250 | 5000 | 600 | 1200 | 6 | ||
| ZWPD012012-16 | 469 | 1875 | 600 | 1200 | 16 | 13.3 | 28.3 |
| ZWPD012012-24 | 313 | 1250 | 600 | 1200 | 24 | ||
| ZWPD012012-36 | 208 | 833 | 600 | 1200 | 36 | ||
| ZWPD012012-64 | 117 | 469 | 600 | 1200 | 64 | 17.1 | 32.1 |
| ZWPD012012-96 | 78 | 313 | 600 | 1200 | 96 | ||
| ZWPD012012-144 | 52 | 208 | 600 | 1200 | 144 | ||
| ZWPD012012-216 | 35 | 139 | 600 | 1200 | 216 | ||
| ZWPD012012-256 | 29 | 117 | 850 | 1700 | 256 | 20.9 | 35.9 |
| ZWPD012012-384 | 20 | 78 | 850 | 1700 | 384 | ||
| ZWPD012012-576 | 13 | 52 | 850 | 1700 | 576 | ||
| ZWPD012012-864 | 9 | 35 | 850 | 1700 | 864 | ||
| ZWPD012012-1296 | 6 | 23 | 850 | 1700 | 1296 |
* The above specifications are subject to change without prior notice. They are for reference only and can be customized as required.
