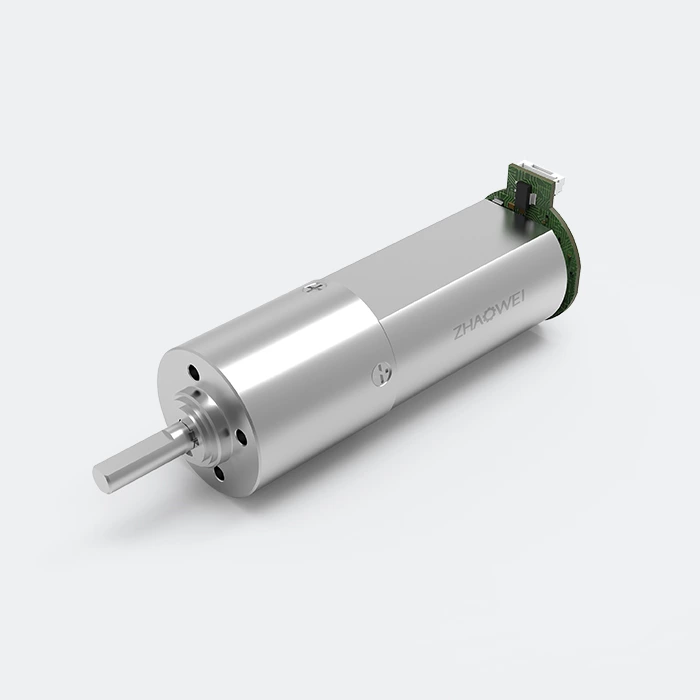

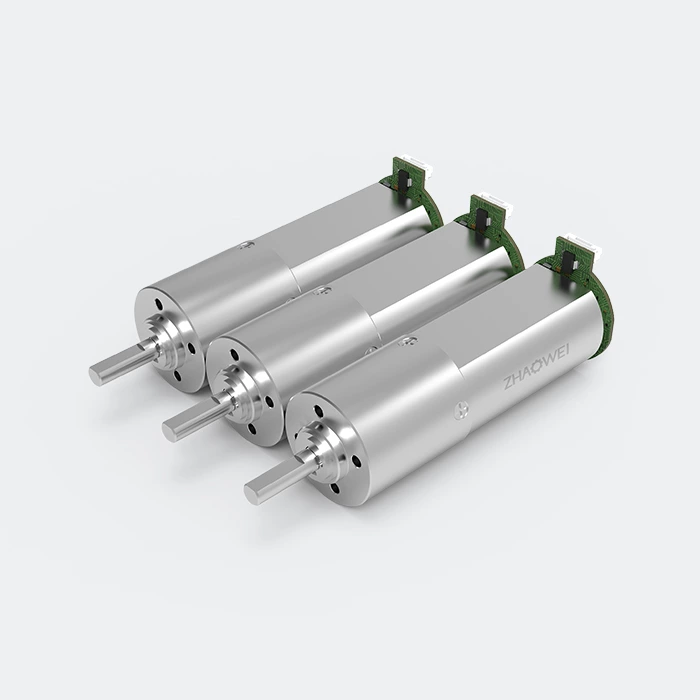

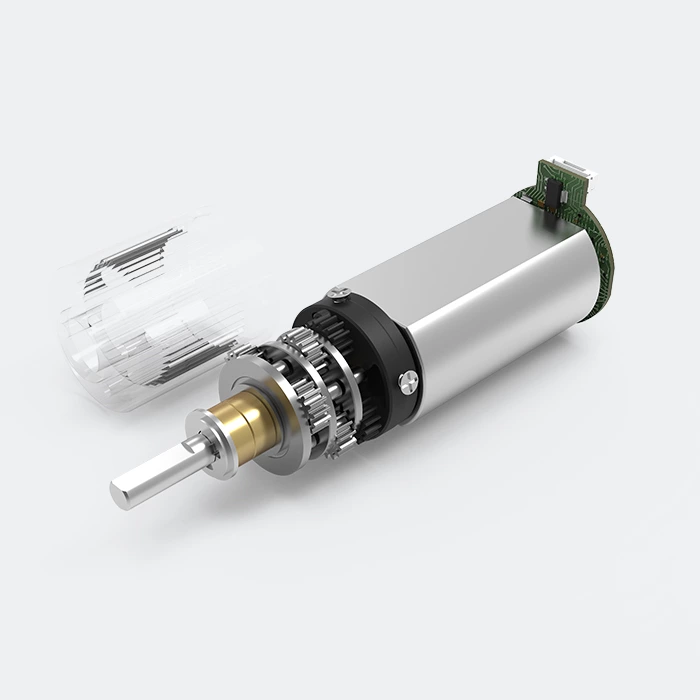

16 mm Metal Planetary Gearbox
Modèle:ZWMD016016
- puissance transmissible maximale
- 2W
- couple continu maximum
- 0.5Nm
Feuille de date pdf
Gearbox Specifications:
| Bearing | Porous bearing | Rolling bearing |
|---|---|---|
| Axial Endplay | ≤0.3mm | ≤0.3mm |
| Radial Loading on Output Shaft | ≤20N | ≤30N |
| Operating Temperature | -30℃ ~ +100℃ | |
Parameters：
| Gearbox Stages | 1 | 2 | 3 | 4 |
|---|---|---|---|---|
| Reduction Ratio | 4/6 | 16/24/36 | 64/96/144/216 | 256/384/576/864/1296 |
| Max Rated Torque (gf.cm max) | 5,000 | 5,000 | 5,000 | 5,000 |
| Max Instant Torque (gf.cm max) | 10,000 | 10,000 | 10,000 | 10,000 |
| Gearbox Efficiency (%) | 90 | 85 | 80 | 70 |
| Length (mm) | 11.5 | 14.8 | 18.1 | 21.4 |
| Gear backlash | ≤3° Customizable | |||

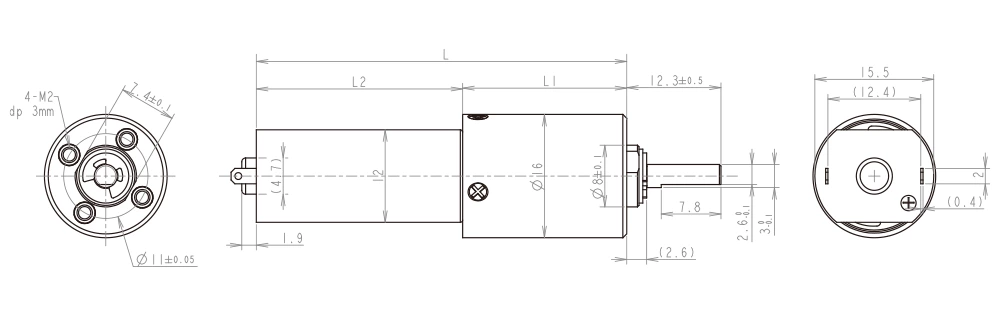

Drawing:
Motor Specifications:
| Motors (Optional) | Brushed DC Motor，BrushlessDC Motor，Coreless Motor, Stepper Motor |
|---|---|
| Voltage (Optional) | 3-24V |
| Input Speed | ≤15,000rpm |
| Current | 300mA max |
Performance Data:
| Model | Rated Speed (rpm) |
Max Speed (rpm) |
Max Rated Torque (gf.cm) | Max Instant Torque (gf.cm) |
Gear Ratio | Length (L1) (mm) |
Overall Length (L) (mm) |
|---|---|---|---|---|---|---|---|
| ZWMD016016-4 | 1875 | 7500 | 5000 | 10000 | 4 | 11.5 | 38.4 |
| ZWMD016016-6 | 1250 | 5000 | 5000 | 10000 | 6 | ||
| ZWMD016016-16 | 469 | 1875 | 5000 | 10000 | 16 | 14.8 | 41.7 |
| ZWMD016016-24 | 313 | 1250 | 5000 | 10000 | 24 | ||
| ZWMD016016-36 | 208 | 833 | 5000 | 10000 | 36 | ||
| ZWMD016016-64 | 117 | 469 | 5000 | 10000 | 64 | 18.1 | 45 |
| ZWMD016016-96 | 78 | 313 | 5000 | 10000 | 96 | ||
| ZWMD016016-114 | 52 | 208 | 5000 | 10000 | 144 | ||
| ZWMD016016-216 | 35 | 139 | 5000 | 10000 | 216 | ||
| ZWMD016016-256 | 29 | 117 | 5000 | 10000 | 256 | 21.4 | 48.3 |
| ZWMD016016-384 | 20 | 78 | 5000 | 10000 | 384 | ||
| ZWMD016016-576 | 13 | 52 | 5000 | 10000 | 576 | ||
| ZWMD016016-864 | 9 | 35 | 5000 | 10000 | 864 | ||
| ZWMD016016-1296 | 6 | 23 | 5000 | 10000 | 1296 |
* The above specifications are subject to change without prior notice. They are for reference only and can be customized as required.
