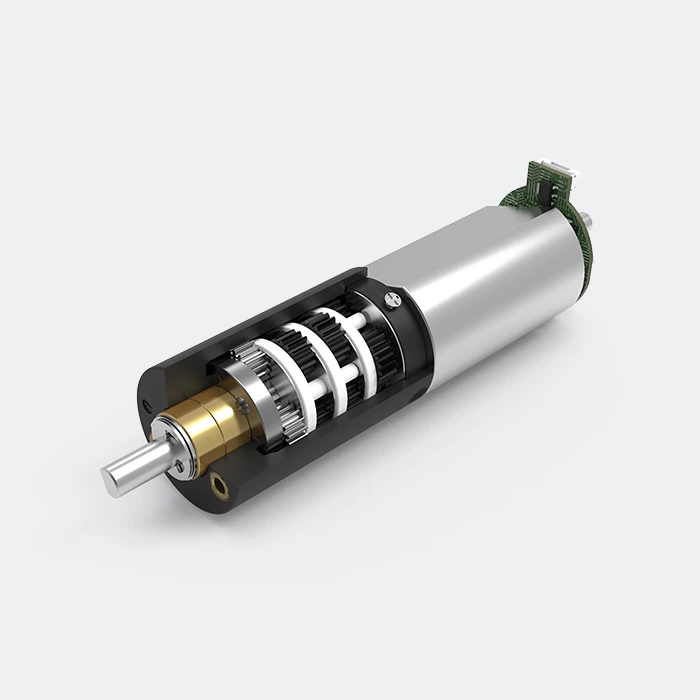

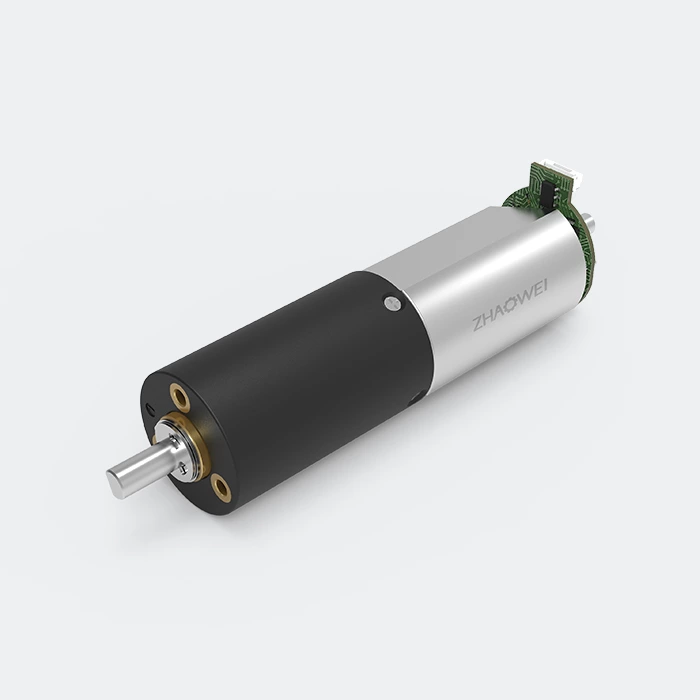

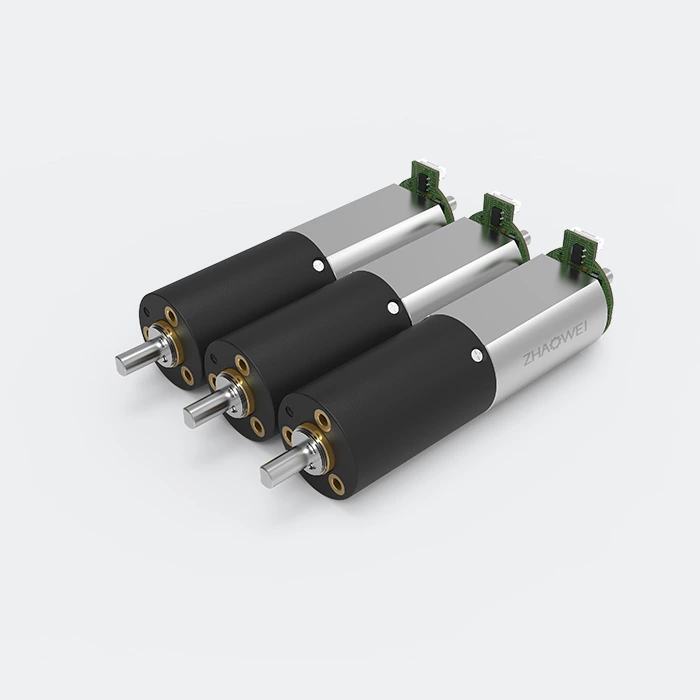

20 mm Plastic Planetary Gearbox
Modèle:ZWBPD020020
- puissance transmissible maximale
- 1.59W
- couple continu maximum
- 1.0Nm
Feuille de date pdf
Gearbox Specifications:
| Bearing | Porous bearing | Rolling bearing |
|---|---|---|
| Axial Endplay | ≤ 0.3 mm | ≤ 0.1 mm |
| Radial Loading on Output Shaft | ≤ 30 N | ≤ 50 N |
| Operating Temperature | -20℃ ~ +85℃ | |
Parameters：
| Gearbox Stages | 1 | 2 | 3 | 4 |
|---|---|---|---|---|
| Reduction Ratio | 4/6 | 16/24/36 | 64/96/144/216 | 256/384/576/864/1296 |
| Max Rated Torque (gf.cm max) | 6,000 | 6,000 | 6,000 | 6,000 |
| Max Instant Torque (gf.cm max) | 15,000 | 15,000 | 15,000 | 15,000 |
| Gearbox Efficiency (%) | 85 | 73 | 65 | 58 |
| Length (mm) | 17.6 | 22.9 | 28.2 | 33.5 |
| Gear backlash | ≤ 3° Customizable | |||

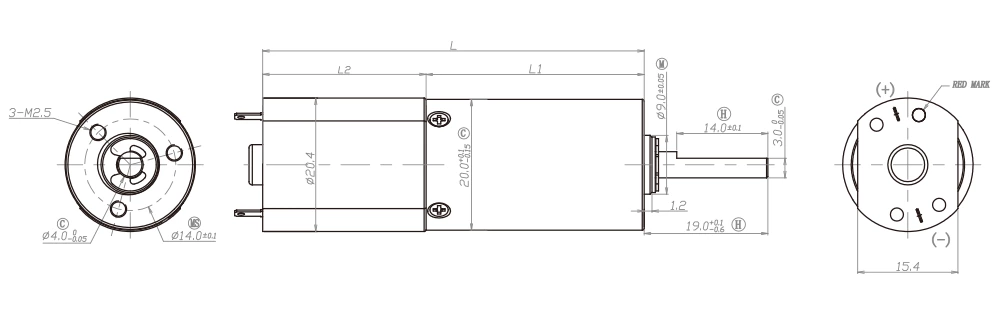

Drawing:
Motor Specifications:
| Motors (Optional) | Brushed DC Motor，Brushless DC Motor，Coreless Motor, Stepper Motor |
|---|---|
| Voltage (Optional) | 3-12 V |
| Input Speed | ≤ 15,000 rpm |
| Current | 300 mA max |
Performance Data:
| Model | Rated Speed (rpm) |
Max Speed (rpm) |
Max Rated Torque (gf.cm) | Max Instant Torque (gf.cm) |
Gear Ratio | Length (L1) (mm) |
Overall Length (L) (mm) |
|---|---|---|---|---|---|---|---|
| ZWBPD020020-4 | 1875 | 7500 | 6000 | 15000 | 4 | 17.6 | 42.7 |
| ZWBPD020020-6 | 1250 | 5000 | 6000 | 15000 | 6 | ||
| ZWBPD020020-16 | 469 | 1875 | 6000 | 15000 | 16 | 22.9 | 48 |
| ZWBPD020020-24 | 313 | 1250 | 6000 | 15000 | 24 | ||
| ZWBPD020020-36 | 208 | 833 | 6000 | 15000 | 36 | ||
| ZWBPD020020-64 | 117 | 469 | 6000 | 15000 | 64 | 28.2 | 53.3 |
| ZWBPD020020-96 | 78 | 313 | 6000 | 15000 | 96 | ||
| ZWBPD020020-144 | 52 | 208 | 6000 | 15000 | 144 | ||
| ZWBPD020020-216 | 35 | 139 | 6000 | 15000 | 216 | ||
| ZWBPD020020-256 | 29 | 117 | 6000 | 15000 | 256 | 33.5 | 58.6 |
| ZWBPD020020-384 | 20 | 78 | 6000 | 15000 | 384 | ||
| ZWBPD020020-576 | 13 | 52 | 6000 | 15000 | 576 | ||
| ZWBPD020020-864 | 9 | 35 | 6000 | 15000 | 864 | ||
| ZWBPD020020-1296 | 6 | 23 | 6000 | 15000 | 1296 |
* The above specifications are subject to change without prior notice. They are for reference only and can be customized as required.
