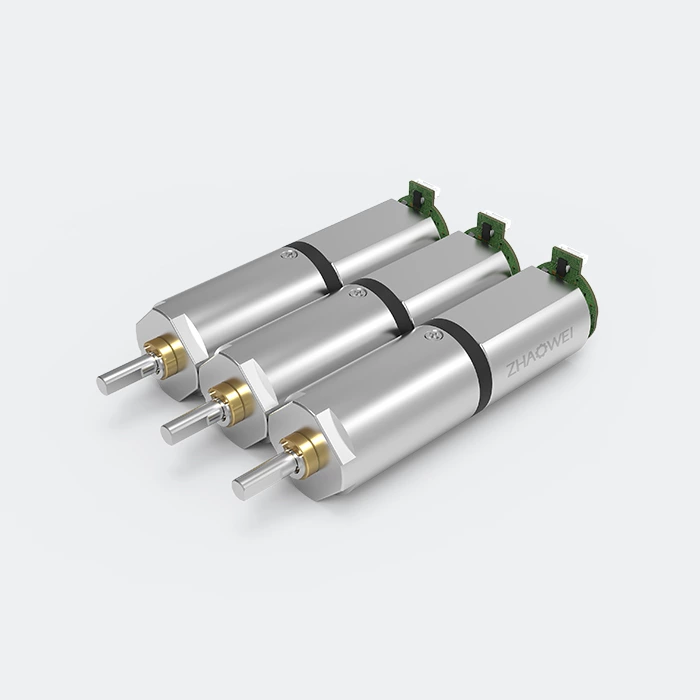

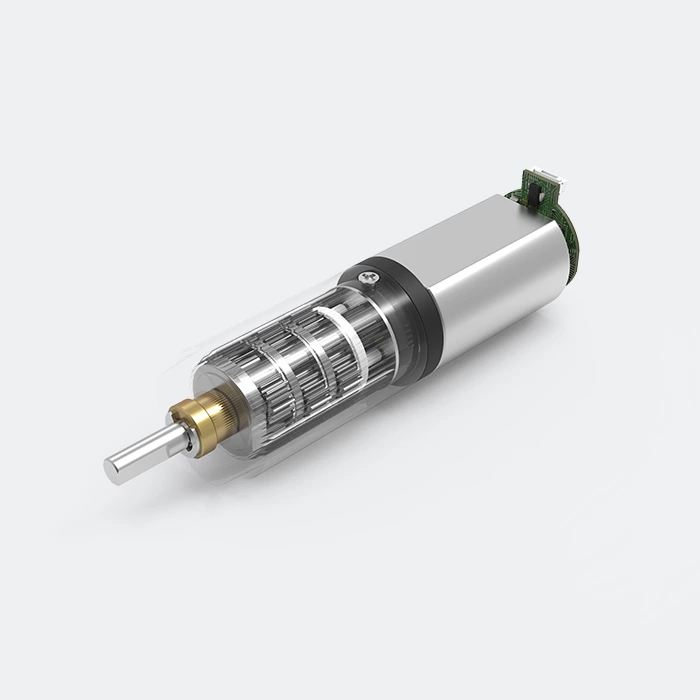

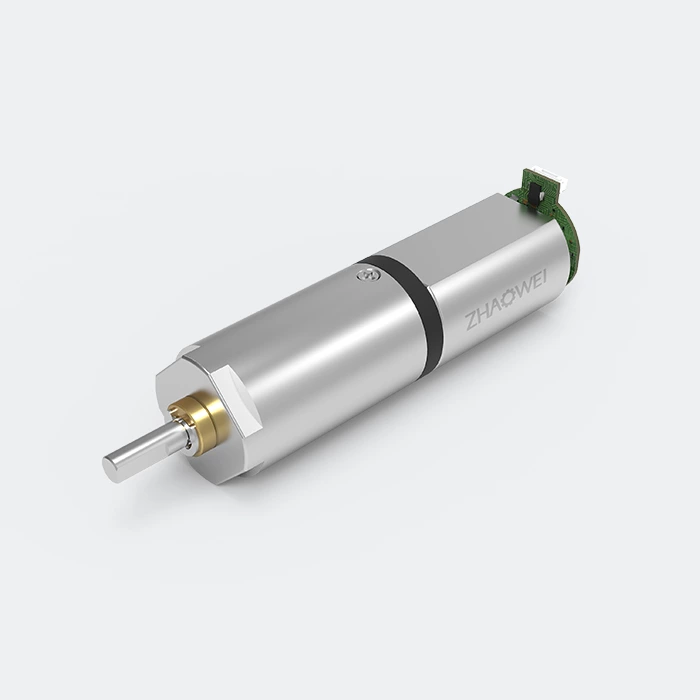

10 mm Metal Planetary Gearbox
Modèle:ZWBMD010010
- puissance transmissible maximale
- 0.2W
- couple continu maximum
- 0.2Nm
Feuille de date pdf
Gearbox Specifications:
| Bearing | Porous bearing | Rolling bearing |
|---|---|---|
| Axial Endplay | ≤0.3mm | ≤0.2mm |
| Radial Loading on Output Shaft | ≤2N | ≤7N |
| Operating Temperature | -20℃ ~ +85℃ | |
Parameters：
| Gearbox Stages | 1 | 2 | 3 | 4 |
|---|---|---|---|---|
| Reduction Ratio | 3/5 | 13/19/28 | 46/69/102/151 | 168/249/368/546/809 |
| Max Rated Torque (gf.cm max) | 1,000 | 1,000 | 1,000 | 1,000 |
| Max Instant Torque (gf.cm max) | 2,000 | 2,000 | 2,000 | 2,000 |
| Gearbox Efficiency (%) | 87 | 74 | 63 | 56 |
| Length (mm) | 9.7 | 12.8 | 15.9 | 19 |
| Gear backlash | ≤3° | |||

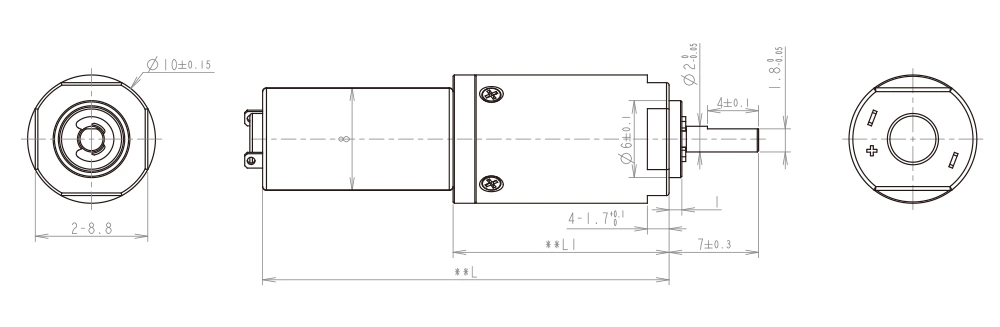

Drawing:
Motor Specifications:
| Motors (Optional) | Brushed DC Motor，Coreless Motor，Stepper Motor |
|---|---|
| Voltage (Optional) | 3-12V |
| Input Speed | ≤30,000rpm |
| Current | 150mA max |
Performance Data:
| Model | Rated Speed (rpm) |
Max Speed (rpm) |
Max Rated Torque (gf.cm) | Max Instant Torque (gf.cm) |
Gear Ratio | Length (L1) (mm) |
Overall Length (L) (mm) |
|---|---|---|---|---|---|---|---|
| ZWBMD010010-4 | 1875 | 7500 | 2000 | 6000 | 4 | 9.7 | 24.7 |
| ZWBMD010010-6 | 1250 | 5000 | 2000 | 6000 | 6 | ||
| ZWBMD010010-13 | 577 | 2308 | 2000 | 6000 | 13 | 12.8 | 27.8 |
| ZWBMD010010-19 | 395 | 1579 | 2000 | 6000 | 19 | ||
| ZWBMD010010-28 | 268 | 1071 | 2000 | 6000 | 28 | ||
| ZWBMD010010-46 | 163 | 652 | 2000 | 6000 | 46 | 15.9 | 30.9 |
| ZWBMD010010-69 | 109 | 435 | 2000 | 6000 | 69 | ||
| ZWBMD010010-102 | 74 | 294 | 2000 | 6000 | 102 | ||
| ZWBMD010010-151 | 50 | 199 | 2000 | 6000 | 151 | ||
| ZWBMD010010-168 | 45 | 179 | 2000 | 6000 | 168 | 19 | 34 |
| ZWBMD010010-249 | 30 | 120 | 2000 | 6000 | 249 | ||
| ZWBMD010010-368 | 20 | 82 | 2000 | 6000 | 368 | ||
| ZWBMD010010-546 | 14 | 55 | 2000 | 6000 | 546 | ||
| ZWBMD010010-809 | 9 | 37 | 2000 | 6000 | 809 |
* The above specifications are subject to change without prior notice. They are for reference only and can be customized as required.
